Pen Plotter Tool:
  This pen plotter tool is from a series of simple tools for collaborative robots that have been made available under an Open Source Hardware license.

The tools are designed by 4TECH Robotics ApS and based on 3D-printed parts.

This and other tools for robots are published as a free design.
More free tools from 4TECH Robotics ApS


Video:





Parts for the tool:

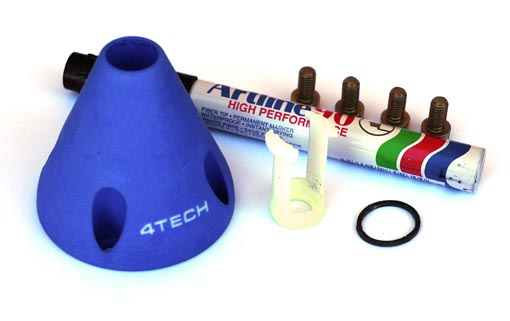

  The pen plotter tool consists of a few parts. The 3D-printed housing, a 3D-printed pen holder, a small rubber band and 4 mounting screws.



CAD-files:


Download the CAD files for the plotter tool.

Maybe you will have to adjust the diameter for the pen to the marker you plan to use.
This version is designed for a ø15 mm pen.


Web Shop:


You can buy the 3D-printed parts for the Pen Plotter from 4TECH Robotics webshop at Shapeways

You will need both "Pen Plotter - Housing" and "Pen holder for Pen Plotter"

This is only the 3D-printed plastic parts for the tool. You have to supply the other parts and to assemble the tool your self.

Feel free to contact for more information on the free tools.
