Selfie Aligner:

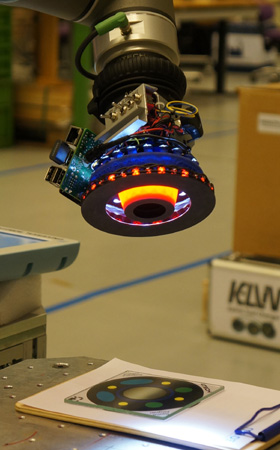

  Selfie Aligner is a vision-based system for calibrating a mobile robot to a workplace.

A mirror in the calibration tag let the camera see it self and align to the tag with an angular precision fare better than traditional systems With a calibration to the workplace within 1 mRad the robot arm will be able to work at the workplace with (almost) same precision as a fixed robot.

Similar to the "last mile" problem for the delivery industry, traditional mobile robots have a "last centimeter" problem. With there lack of precision, they can only be used for "box handling".

The Selfie Aligner solve this problem. The ability to perform high accuracy tasks will take mobile robots to the next level and can spark a breake through for mobile manipulators.


See what is possible with the Selfie Aligner in the small videos below.
They give a quick intro to the what is possible with high precision alignment.



Short demo videos:


  Transistor Test:

Placing a small BC547 transistor in PCB at workplace with a mobile robot

View this short video to get a quick intro to the Selfie Aligner


  Wax Test:

Demonstration with one meter between calibration tag and wax stamp

Very visual demonstration of the extreem high accuracy




Information on the Selfie Aligner:


  Presentation:
    pdf

General information on the system for calibrating a mobile robot to a workplace with extreme high precision
  How it Works:
    pdf

Introduction to how the Selfie Aligner works
  FAQ:
    pdf

Answers to the most Frequently Asked Questions
  Business Case:
    pdf

How to improve your business by using the Selfie Aligner
  Odd-Size Components:
    pdf

Mounting odd-size components are now possible with mobile robots
  Machin Tending:
    pdf

Machine Tending with mobile robots made possible with the Selfie Aligner
  Repeatability
Short version:
    pdf

Short summary on the test of the repeatability for the Selfie Aligner
  Repeatability
Full version:
    pdf

Full report on the measurement of repeatability for the Selfie Aligner. One Meter Wax Test, Stability of ARM platform and more
  Patent:
    pdf

Intellectual property for the Selfie Aligner is protected by patent



More videos:


  Wax Test with Intro:

Long version af the Wax Test.

Introduction describing the technology behind the Selfie Aligner.

Followed by three rounds off alignment and stamping on the wax block.


  Transistor Test:

Long version af the Transistor Test.
Full process with no cuts in the video.

Please note that a tool change is here also a part of the process.
This is only possible with the high repeatability of the Kelvin Tool Changer.


  Repeatebility Test:

Accuracy test of the Selfie Aligner

Video from the test used for the statistics on the stability of the system


  ARM Stabilitet:

How stabel is the MiR platform?
Part of the repetability test of the Selfie Aligner


  Proof of Concept:

Early demo with automatic alignment

Demonstration where the values calculated by the Selfie Aligner is typed in manualy on the UR robot controler


  Manuel Test:

Very early demo with manualy alignment

Intro and Bank note test


  Manuel Test:

Bank note demo
